Bead winding is one of the most critical and technically demanding processes on the production floor. It’s the foundation of tire integrity, durability, and performance, ensuring proper tire-to-rim fitment, optimal structural strength, and consistent tire performance throughout the millions for rotational cycles, and multiple fitment cycles that a tire may be subjected to within its service life.
For tire producers, variations in bead tension, geometry, or uniformity can create problems in tire production, increasing scrap and rework rates, contributing to increased production costs.
For manufacturers who are constantly under pressure to improve efficiency while maintaining uncompromising quality, bead winding technology must deliver long-term reliability, repeatability, and return on investment.
This is exactly where Bartell’s bead winding solutions set themselves apart.
Understanding the Bead Winding Process
At its core, bead winding is the precision-controlled process of winding high-tensile steel wire, often coated bronze wire or other advanced alloys into a toroidal shape that forms the tire bead. This bead is responsible for:
- Anchoring the tire to the rim
- Supporting the casing underload
- Enabling consistent inflation pressure
- Ensuring long-term tire uniformity
Bead winding sets the foundation of the entire tire and serves as the critical connection point between the tire and the wheel. This connection point is responsible for secure rim retention, air pressure sealing, weight transfer during corning, braking and acceleration. As a result, the structural integrity, durability, and performance of each tire are dependent on the quality and consistency of the bead.
Modern tire designs utilize various types of bead configurations such as flat or taper base hexagonal or square section single wire beads, weftless bead construction, or cable type beads, catering to diverse applications in passenger cars, commercial vehicles, motorcycles, off-road vehicles, industrial machinery, and oil and gas machinery.
Overall, bead winding machines must execute several highly controlled actions simultaneously:
- Wire tension and feed control
- Accurate profile winding around a spindle
- Cutting operations
- Precise wire placement throughout the buildup process
Even a minor deviation in winding angle, tension, or alignment can compromise bead performance. As tire designs become more advanced with varying bead shapes, complex geometries, and higher-strength materials, the demand for precise, dependable machinery have increased.
The Engineering Challenges in Bead Winding
Bartell’s bead winding systems are engineered for
long-term, stable production of high-tolerance beads across years of service and millions of production cycles. The design enables end users to preserve machine component tolerances while establishing consistent, predictable preventive-maintenance schedules for wear components.
Maintaining Consistent Tension Across the Entire Process
Process control of wire tension is critical for achieving consistency of the bead build. Proper tension plays a significant role in establishing steel memory during the pre-cast stage. Implementing an accurate and consistent wire cast ensures appropriate bead stiffness, roundness, and long-term fatigue performance.
Machine Dynamics & Wire Handling
Consistent bead quality depends on smooth, stable machine operation across the full lifecycle of the bead winder. Electrical disturbances or mechanical instability can disrupt controlled motion and tension, increasing the risk of inconsistent bead build and dimensional variation.
Bead Geometry & Forming Precision
Production SKUs continue to proliferate within the tire plant as tire designs continue to evolve, driving increased variation in bead designs. Maintaining tight production tolerances across varying bead designs requires precise tolerancing of the underlying production equipment, and can be supported with integrated quality control systems for measurement and monitoring of product.
Why Bartell Leads the Industry in Bead Winding Technology
Bartell has been the global standard for bead winding technology for decades, and for good reason: innovation in machinery design, unmatched machine durability, and a system-level approach to precision manufacturing. Bartell has built its reputation as a trusted supplier of bead winding equipment for the world’s leading tire producers. This reputation has been developed through the consistent delivery of superior machine quality, performance, expertise and a history that dates back to the original development of single wire bead winding technology.
Here’s where Bartell dominates the competition:
Superior Tension Control for Maximum Uniformity
Bartell machines incorporate advanced wire tension control systems that maintain constant tension across every turn. This achieves exceptionally uniform bead geometry across production lots, improved tire-building compatibility, and lower scrap and rework.
With production systems capable of producing taper base, single wire hexagonal, square section, or weftless beads, our configurations are capable of meeting any application.
Where competitive machines often rely on less responsive systems or mechanical-only control, Bartell provides options for true, real-time tension stability, compensating through changes in speed, wire feed, or changes in tension of the wire as it exits the pay-off reel.

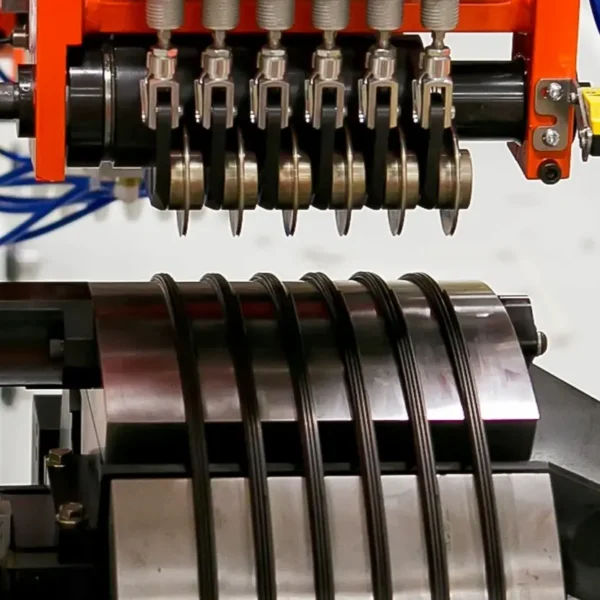

Precision Engineered Winding Head with Ultra-High Repeatability
A bead is only as accurate as the winding system that forms it. Bartell’s winding heads are engineered with precision mechanical structures and superior build quality to ensure precision motion, leading to precision in bead production, consistent production and tight CPK performance, allowing tire makers to meet demanding specifications and to maintain production output with confidence.
Extrusion Systems Designed for High-Speed Production
With increasing line speeds and higher production demands, Bartell provides extrusion systems tailored to specific customer requirements. Precisely engineered designs ensure consistent, reliable rubber adhesion across all wire types, an area where competing systems often fallen short.
Flexible, Modular Designs for Complex Tire Bead Requirements
Whether producing tire beads for passenger, truck and bus applications, or large beads for off-highway and industrial applications, Bartell bead winding machines provide modularity and configurability, allowing manufacturers to upgrade their bead winding machines for modular increases of production capacity, or retooling for production of a wide variety of beads for various application. The flexibility and modularity of Bartell bead winding machines provide the security of future-proofing the machine investment.
Industry-Leading Machine Durability & Lifecycle Performance
Bead winding is a high-load, continuous-duty operation requiring extremely tight tolerances on each individual product. Bartell machines are designed to operate reliably for decades while maintaining product tolerances promised from the very beginning. Predictable service intervals on high-wear components allow tire makers to stay stocked and prepared for both planned or unplanned machine downtime. When proper preventative maintenance practices are followed, Bartell machines continue to operate efficiently and effectively.
Bartell machines are engineered for extreme longevity with structural precision, rugged components, and maintainability considerations considered for each assembly. Customers consistently report longer machine lifecycles, fewer part failures, and higher operating efficiency. Dependability is a component of what makes Bartell the industry leader.

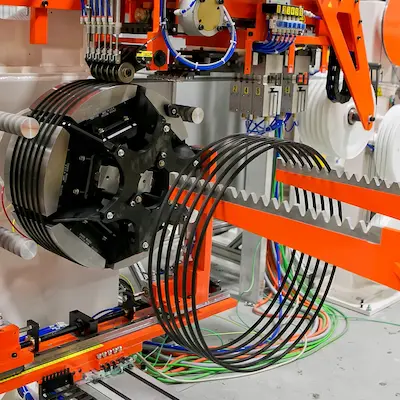

Integrated Automation & Smart Controls
Modern manufacturing requires intelligent data-driven systems. Bartell bead winding machines incorporate modern operator interfaces with increased use of visualizations, integrated quality monitoring, real-time diagnostics and alerts, and connectivity for smart factory integration. These capabilities reduce operator error, streamline training, and ensure consistent performance across shifts.
Advancements in automatic Bead Handling have reduced operator intervention and increased production rates for tire makers. Fully automated designs have allowed for consistent and continuous production, even with minimal manpower.
Proven Global Support & Engineering Expertise
Bartell’s bead winding solutions are backed by a global service and engineering network that provides fast support response, on-site training, maintenance optimizing programs, spare parts availability, and continuous improvement expertise. Where competitors often fall short on lifecycle support, Bartell provides unmatched end-to-end value that extends far beyond machinery alone.
What Bead Winding Means for Tire Manufacturers
Choosing the right bead winding system influences every downstream process in tire production. The advantages of Bartell’s bead winding technology translate into measurable performance improvements.
- Reduced waste
- Reduced downtime
- Reduced operator intervention
- Faster cycle times
- Better tire uniformity
- Longer component lifespan
- Increased throughput
- Higher overall equipment effectiveness
- Higher precision
- Improved machine operating efficiency
For manufacturers looking to elevate precision, consistency, and long-term reliability, Bartell bead winding systems offer a proven pathway to performance leadership.
Precision Meets Uniformity: Bartell Sets the Bead Winding Standard
Bead winding may appear to be a single step in the tire manufacturing process, but it’s foundational to tire performance and production efficiency. With increasing complexity in tire design, OEMs need bead winding solutions that deliver unmatched precision and repeatability.
Bartell leads the industry because our systems are engineered with one goal in mind: superior bead quality achieved through robust, intelligent, and reliable machinery.
For manufacturers striving to reduce costs, improve uniformity, and maximize uptime, Bartell remains the clear choice for bead winding excellence.
