Drum Stranders and Cablers

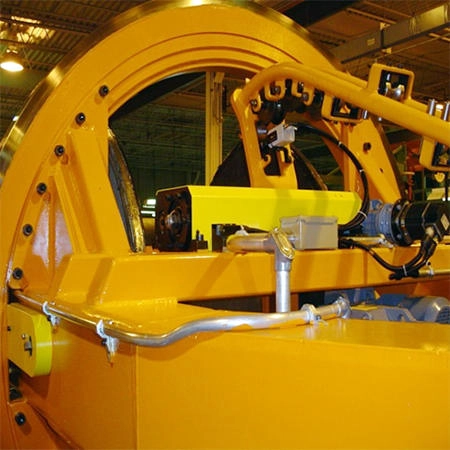

The primary components of any Drum Twister lines are; rotating take-ups, rotating pay-offs or, a combination of both.

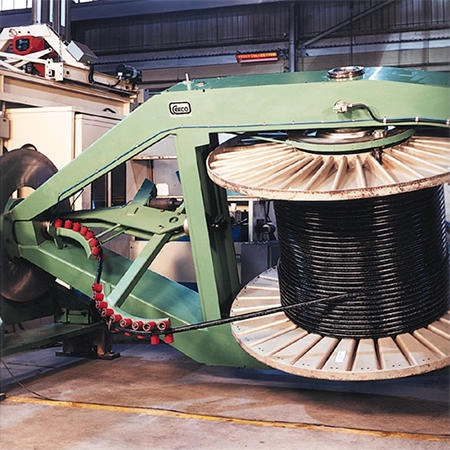

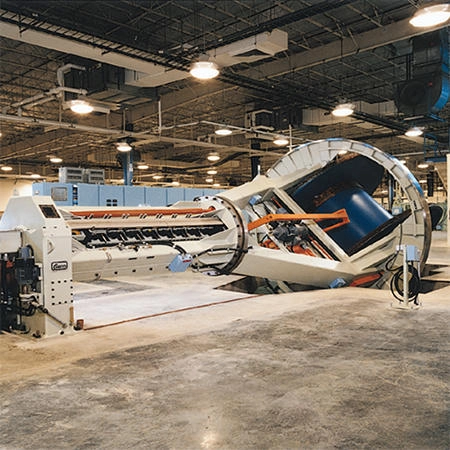

Depending on application they are manufactured in different designs; closed cradle, open cradle (Trunnion), fork type and vertical type.
Drum Twisters are suitable for the concentric assembly of:
- Insulated conductors
- Screening power cables
- Stranded, round and sector conductors
- Milliken conductors
- Steel wire armouring
- Instrumentation, data and control cable
- Telephone cable

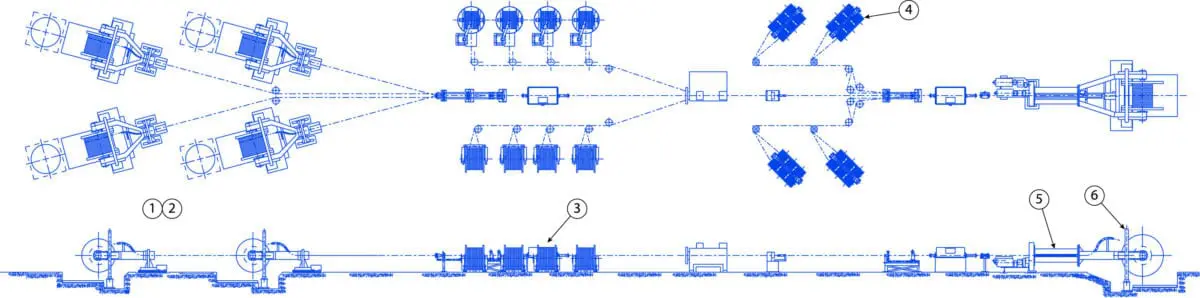

A Typical line for a multi-core power cable (Cabling/Armouring/Screening) consists of:
- Rotating pay-offs (Closed, Open or Fork design)
- Strand block/sector sensing/correcting unit
- Multiple pay-offs to supply armouring/screening wires
- Taping heads (metallic & non-metallic tapes)
- Rotating haul-off unit
- Rotating take-up (Closed, Open or Fork design)
Machine parameters are digitally monitored and controlled via a Programmable Logic Controller (PLC) and a menu driven touch screen so that at each stage the operator is guided to obtain the desired machine operation.
Features & Benefits
| Feature | Benefit |
|---|---|
|
Single Operator Control |
Minimal Manpower Requirement |
|
Integrated Line Control |
Controlled Process |
|
Loading System |
Improved Productivity |
|
Simple Machine Set-up |
Reduced Downtime |
|
System Diagnostics |
Reduced Downtime |
|
Smooth Wire Path |
Improved Product Quality |
Options
- Overhead Loader or Hydraulic lifting table
- Rotating turn table
- Rotating torsion helper
- Video monitoring

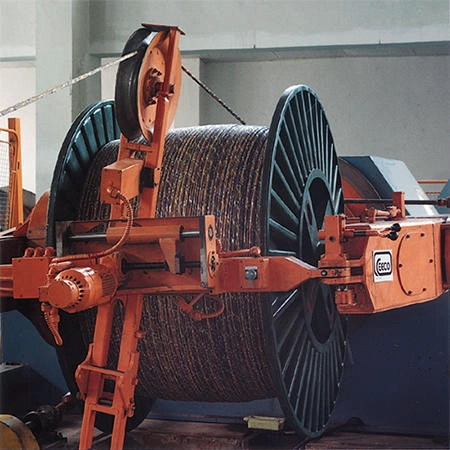

- Pneumatic, pre-loaded Fleet-O-Matic® dancer arm for pay-offs
- Pneumatic, pre-loaded Gooseneck traverse arm for Take-up

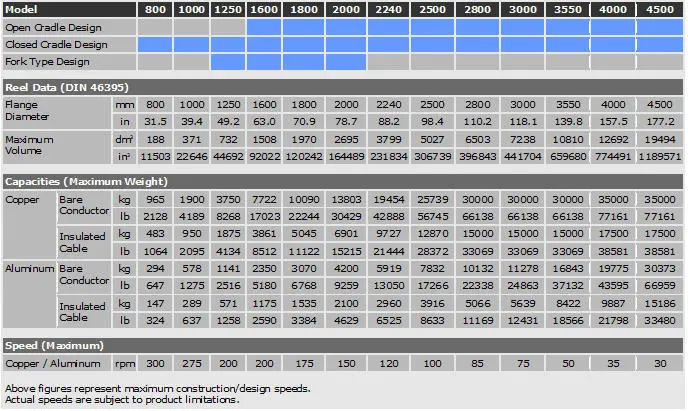

Specifications
