Fiber Optic Planetary Strander
This specific strander has shaft pay off design suitable to assemble fiber optic elements (buffered tubes, ribbons).

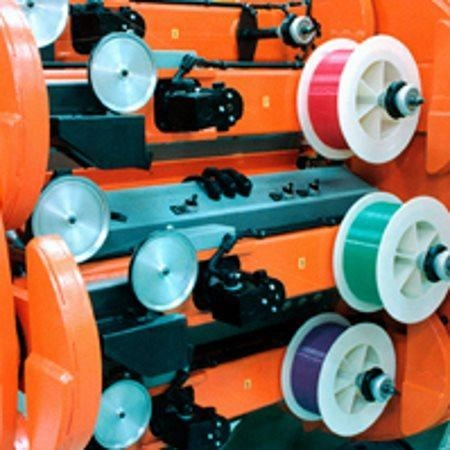

This strander is designed for the stranding of fiber optics with precise tension control. Line component parameters are set and controlled from operator HMI touch screen. The path of the material is precisely guided. Each position is equipped with an extremely low friction, pneumatic pre-loaded dancer arm that maintains the preset tension during the process. Each spindle is driven to ensure the preset tension is maintained throughout the run.

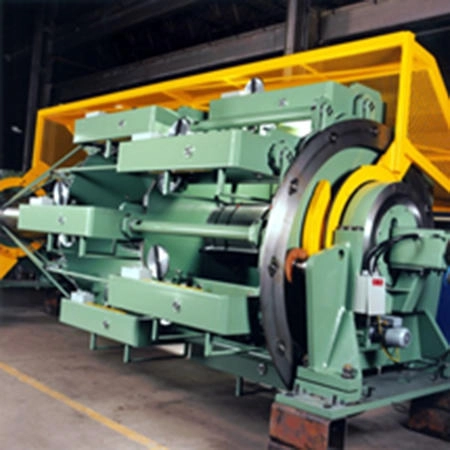

Ceeco Bartell designs planetary strander lines with rotating cage and stationary cage for assembly fiber optics and small size power and control wires
This design is available to accommodate a wide range of reels to suit fiber length required.
| Feature | Benefit |
|---|---|
|
Gentle Wire Path |
Superior Tension Control |
|
High Linear Speed |
Improved Productivity |
|
Compact Machine Footprint |
Reduce Investment |
|
Greater Level of Automation |
Minimize Operator Error |
- Number of positions: up to 24
- Typical Reel size: 250 – 450 mm (10-18 inches)
- Rotating Speed: up to 200 RPM *
- Linear speed: up to 75 m/min or 250 ft/min*
- Tension range: 30-300 cN*
*- Product dependent
