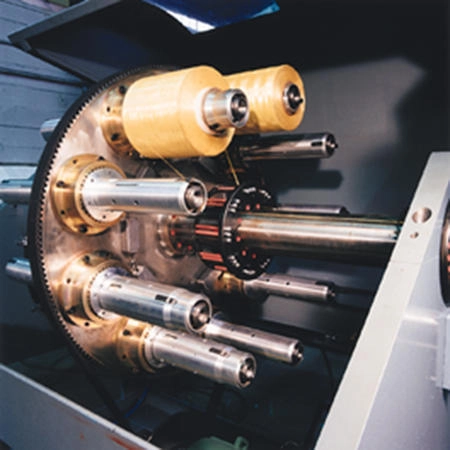

Aramid Fiber Strander
This specific Rigid strander has shaft pay off design suitable to supply Aramid fiber reinforcement materials over the cable.
This strander is designed for the applying Aramid fibers over the cable. This design is available to suit a wide range of packages. Precise tension control is a feature of this design. A broken Aramid fiber detector will activate the line’s rapid stop deceleration in case of missing fiber bundle element.
Features & Benefits
| Feature | Benefit |
|---|---|
|
Gentle Wire Path |
Superior Tension Control |
|
High Linear Speed |
Improved Productivity |
|
Compact Machine Footprint |
Reduce Investment |
|
Greater Level of Automation |
Minimize Operator Error |
Specifications
- Number of positions: 9, 18
- Typical package size: 200 mm (8 inches)
- Rotating Speed: up to 250 RPM*
- Linear speed: up to 50 m/min or 160 ft/min*
- Tension range: up to 20 N*
*- Product dependent
