Data Group Twinner
Twinning and Cabling Line tandemizes two processes of twinning and cabling in a single production line. Backtwist concept adds the capability of neutralizing the effect of concentricity between the conductor and its insulation, results in the averaging of mutual capacitance, capacitance unbalance (NEXT loss) and impedance.
- 4 individual inside-out backtwist double twist twinner
- Suitable for solid HDPE, FEP, FRPE, Foam HDPE, FEP insulations
- Adjustable variable backtwist
- Precise wire tension adjustment
- Aerofoil shaped bow with low tension/speed profile
- Single Twist cabler with torsion lock
- Max. design speed: 2250 RPM (4500 Twist/min)
- Copper diameter range: 0.40 – 0.65 mm (AWG # 26-22)
- Variable backtwist: 0-30%
- Lay range: 6.35 – 50 mm (0.25- 2 inches)
- Single twist cabler reel size: 1000 mm
Machine parameters are digitally monitored and controlled via a Programmable Logic Controller (PLC) and a menu driven touch screen so that at each stage the operator is guided to obtain the desired machine operation.
Features & Benefits
| Feature | Benefit |
|---|---|
|
Variable Backtwist |
Improved Impedance Values |
|
Gentle & Balanced Wire Path |
Superior Tension Control |
|
High Rotational Speed |
Improved Productivity |
|
Torsion Lock Design Take Up |
Improved Taping Quality |
|
Lay Monitor |
Ensures Integrity & Safety Against Lay Drift |
|
Aerodynamic Bow |
Low Tension/Speed Profile |
|
Compact Machine Footprint |
Reduced Investment |
Options
- Inclined or horizontal design Backtwist Twinners
- Electrical or mechanical line shaft
- Reel shroud design to suit higher category LAN demands
- Stationary or rotating haul-off unit
- Inline Pair & cable shielding application
- Inline filler & center member application

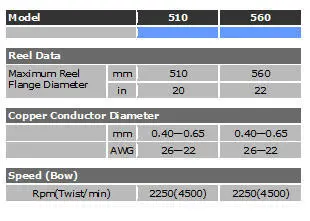

Specifications
