High Speed Twinner
Bartell supplies a complete range of horizontal twinners to suit requirements for production of Telecom and Data pairs. The twinners are designed to accommodate take up reels with diameters of 400mm (16 in) , 510mm (20 in), 560mm (22 in) and 610mm (24 in).
High speed twinners are ideal for the manufacturing shield and unshielded pairs up to 5.0mm (0.20 in) diameter with the bow speed of up to 2500 RPM (5000 TPM) and line speeds of up to 600 m/min (2000 ft/min). A digital drive package ensures precise lay control of the finished pair.This line is suitable to assemble with solid HDPE, FEP, FRPE, Foam HDPE and FEP insulations.
The major components of the line include the following:

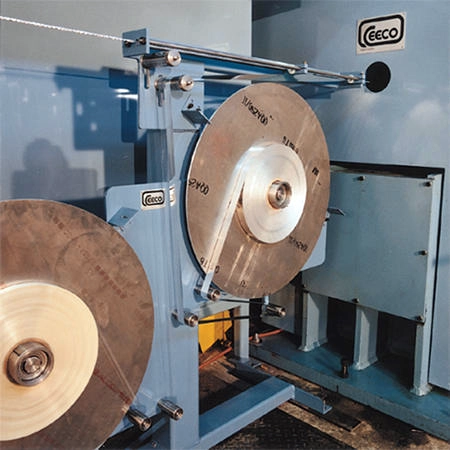

- Dual driven payoff or Backtwist Pay-off for LAN pairs

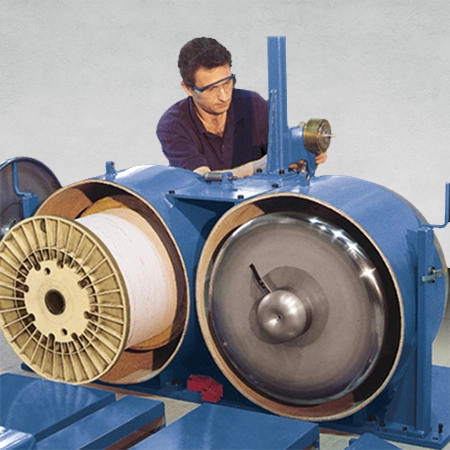

- High Speed Twinner
Machine parameters are digitally monitored and controlled via a Programmable Logic Controller (PLC) and a menu driven touch screen so that at each stage the operator is guided to obtain the desired machine operation.
Features & Benefits
| Feature | Benefit |
|---|---|
|
Gentle & Balanced Wire Path |
Superior Tension Control |
|
High Rotational Speed |
Improved Productivity |
|
Aerodynamic Bow |
Low Tension/Speed Profile |
|
Compact Machine Footprint |
Reduced Investment |
|
Greater Level Of Automation |
Minimize Operator Error |
Options
- Tape pay-off for shielded pairs
- Pre-Twister unit (shielded pairs)
- Lay monitoring
- Loading/unloading system

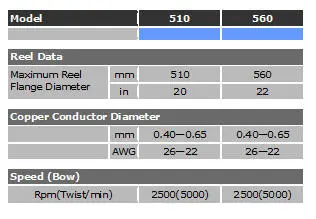

Specifications
